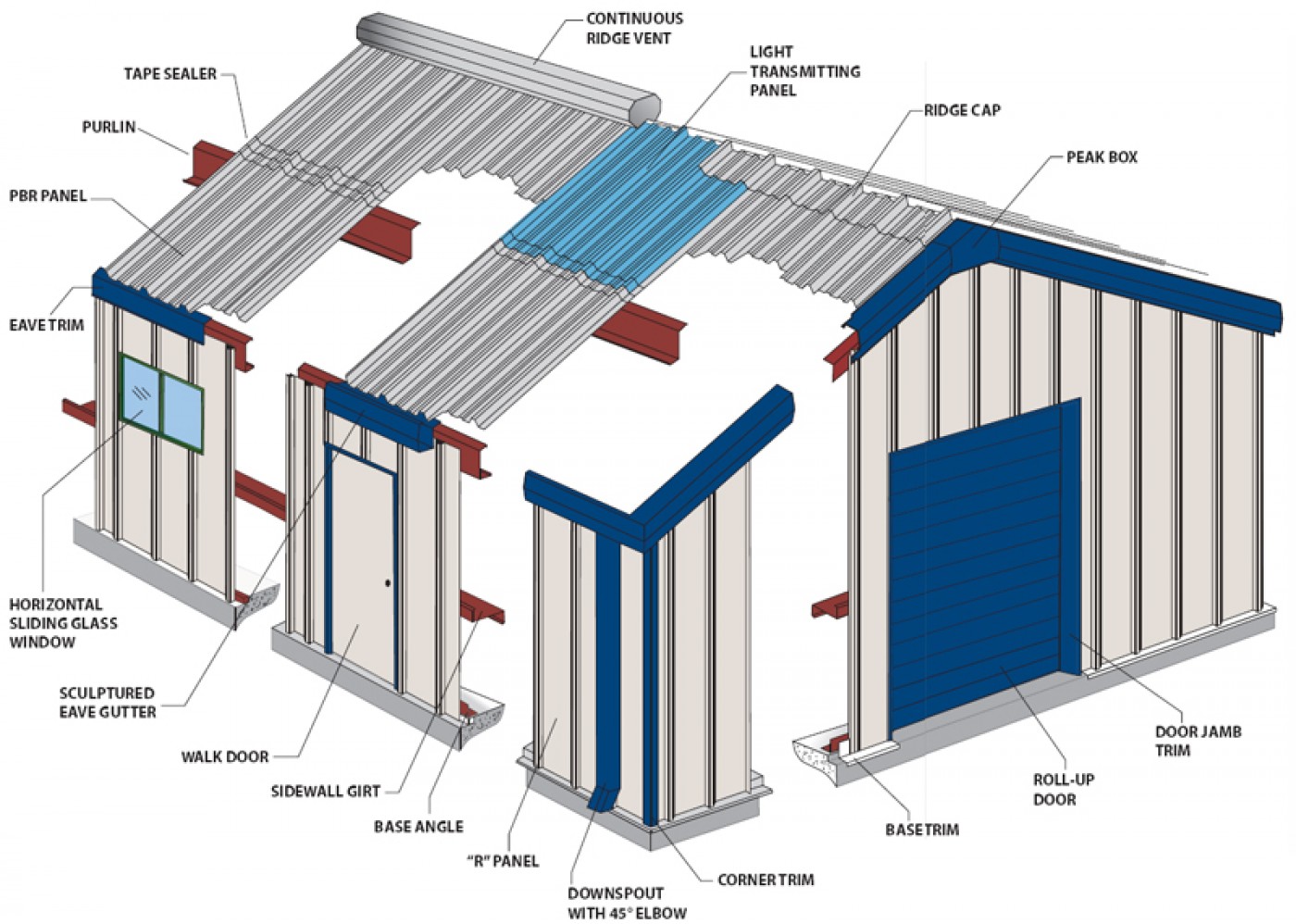

Anchor Bolt Plan
A plan view drawing showing the diameter, location, and projection of all anchor bolts for the
components of the Metal Building System and may show column reactions (magnitude and direction). The maximum base plate dimensions may also be shown.

Approval Drawings
A set of drawings that may include framing plans, elevations, and sections through the building for
approval by the builder.

Base Angle
An angle secured to a wall or foundation used to attach the bottom of the wall paneling.

Bay
The space between frame center lines or primary supporting members in the longitudinal direction
of the building.

Beam and Column
A structural system consisting of a series of rafter beams supported by columns. Often used as the
end frame of a building.

Bracing
Rods, angles, or cables used in the plane of the roof and walls to transfer loads, such as wind, seismic and crane thrusts to the foundation.

Building Code
Regulations established by a recognized agency describing design loads, procedures and construction details for structures usually applying to a designated political jurisdiction (city, county, state, etc.).

Built-Up Section
A structural member, usually an “I” shaped section, made from individual flat plates welded together.

Cee Section
A member in the shape of a block “C” formed from steel sheet, that may be used either singularly or
back to back.

Closure Strip
A strip, formed to the contour of ribbed panels and used to close openings created by ribbed
panels joining other components, either made of resilient material or metal.

Eave
The line along the sidewall formed by the intersection of the planes of the roof and wall.

Framed Opening
Framing members and flashing which surround an opening.

Gable
The triangular portion of the endwall from the level of the eave to the ridge of the roof.
Loads…

  • Auxiliary Loads All specified dynamic live loads other than the basic design loads which thebuilding must safely withstand, such as cranes, material handling systems, machinery, elevators, vehicles, and impact loads.
  • Collateral Loads The weight of additional permanent materials required by the contract,other than the Building System, such as sprinklers, mechanical and electrical systems, partitions and ceilings.
  • Dead Loads The dead load of a building is the weight of all permanent construction, such asfloor, roof, framing, and covering members.
  • Design Loads Those loads specified in building codes published by Federal, State, County, or City agencies, or in owner’s specifications to be used in the design of a building.
  • Live Loads Loads that are produced (1) during maintenance by workers, equipment, and materials, and (2) during the life of the structure by movable objects and do not include wind, snow, seismic, or dead loads.

Main Frame
An assemblage of rafters and columns that support the secondary framing members and transfer
loads directly to the foundation.

Purlin
A horizontal structural member that supports roof coverings and carries loads to the primary
framing members.

Rake
The intersection of the plane of the roof and the plane of the endwall.

Ridge
The horizontal line formed by opposing sloping sides of a roof running parallel with the building
length.

Self-Drilling Screw
A fastener that combines the function of drilling and tapping.

Self-Tapping Screw
A fastener that taps its own threads in a predrilled hole.

Ventilator
A roof mounted accessory, which allows the air to pass through.

Zee Section
A member cold formed from steel sheet in the approximate shape of a “Z”.
