- All Cees are manufactured with symmetrical flanges.
- Cees and Zees are manufactured in accordance with LGSI requirements. For code requirements, contact Sawyer’s Customer Service Department or Sales Representative.

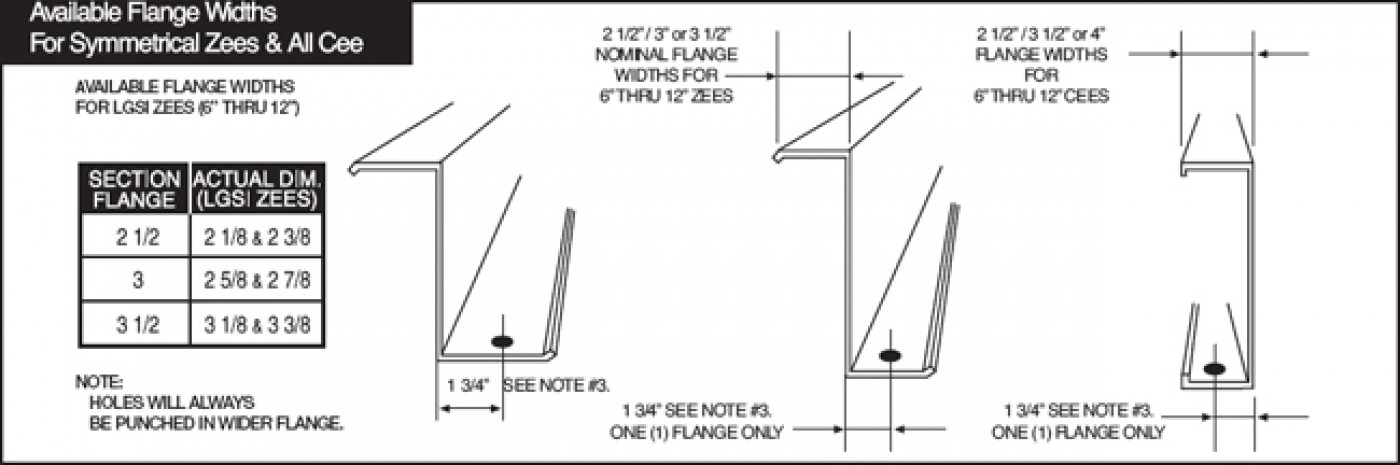

- Flange punching is available on 6” through 12” Zees and Cees, but must be requested.

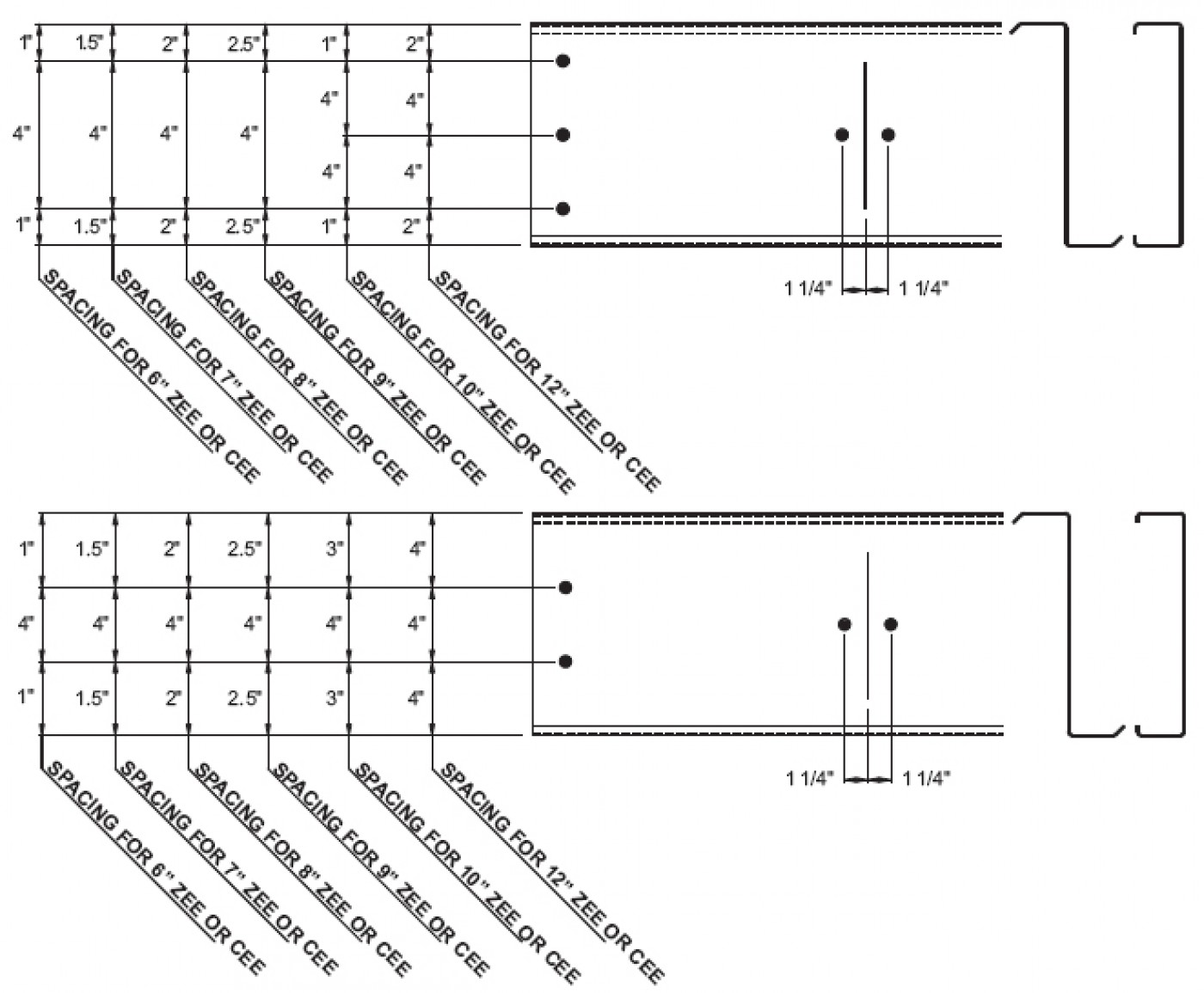

- Web punching is available on 6” through 12” Zees and Cees. For web punching on 4” members, contact Sawyer’s Customer Service Department or Sales Representative.
- Limited web and flange holes may be added. A drawing must accompany the order.
- Zees and Cees may have extra holes - these are used for alternate bolting patterns.
- Sag rod holes, when requested, are located at the center of the Cee or Zee length, and at the center of the section depth. A drawing must accompany orders for other hole locations.
- For lengths less than 8’ that require punching, contact Sawyer’s Customer Service Department.
- Round holes are 5/8” diameter, slots are 5/8” x 3/4”.
- Holes are punched to accommodate 1/2” diameter bolts.
- For questions regarding orders or product information, contact Sawyer’s Customer Service Department or Sales Representative.
- Consult LGSI Manual for design information.
