Other section depths compatible with cees and zees are available. Contact Customer Service for more information.
Note: Available in plain and punched.
ORDER INFORMATION

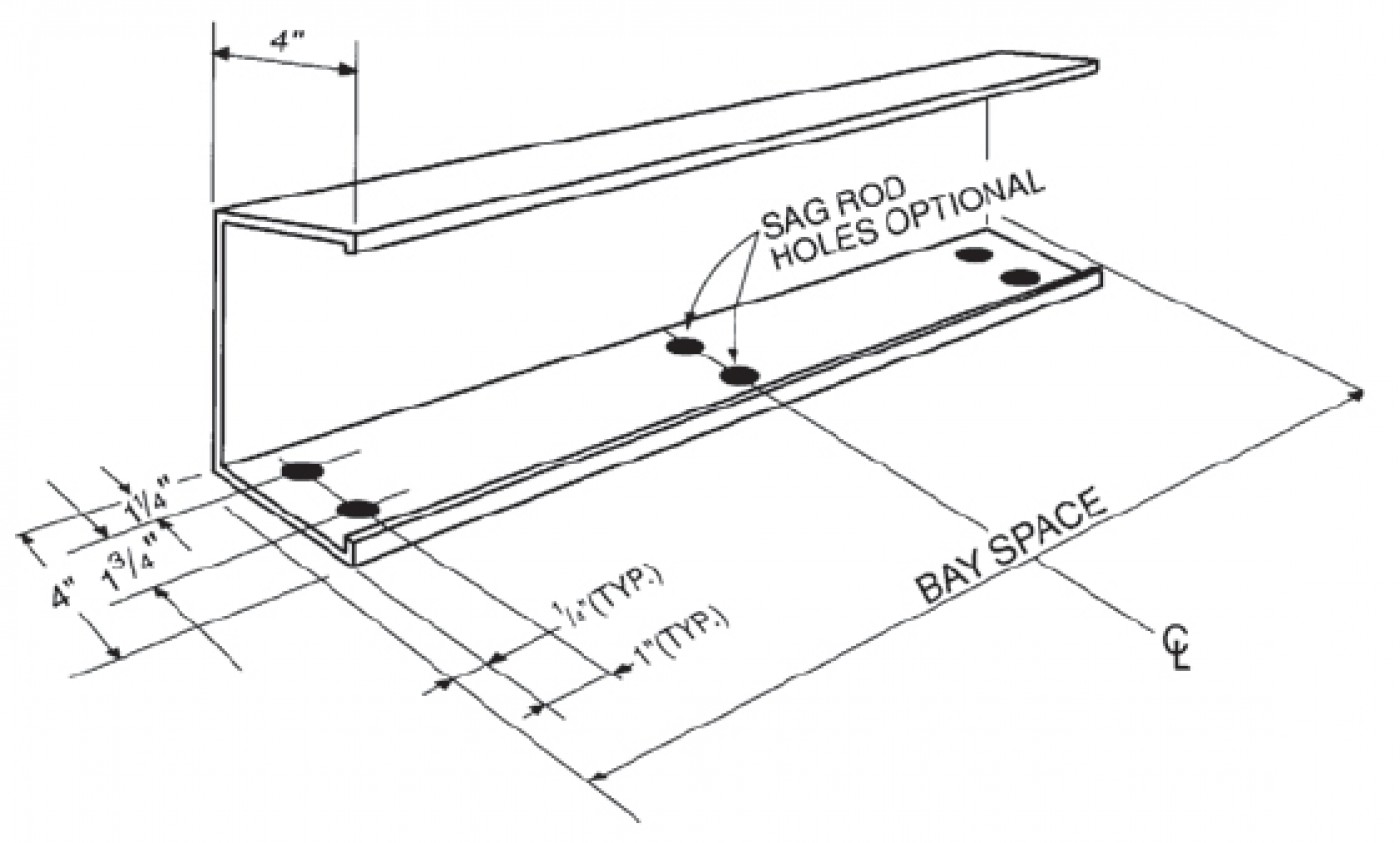

To determine actual order length, subtract 1/2” from bay spacing.

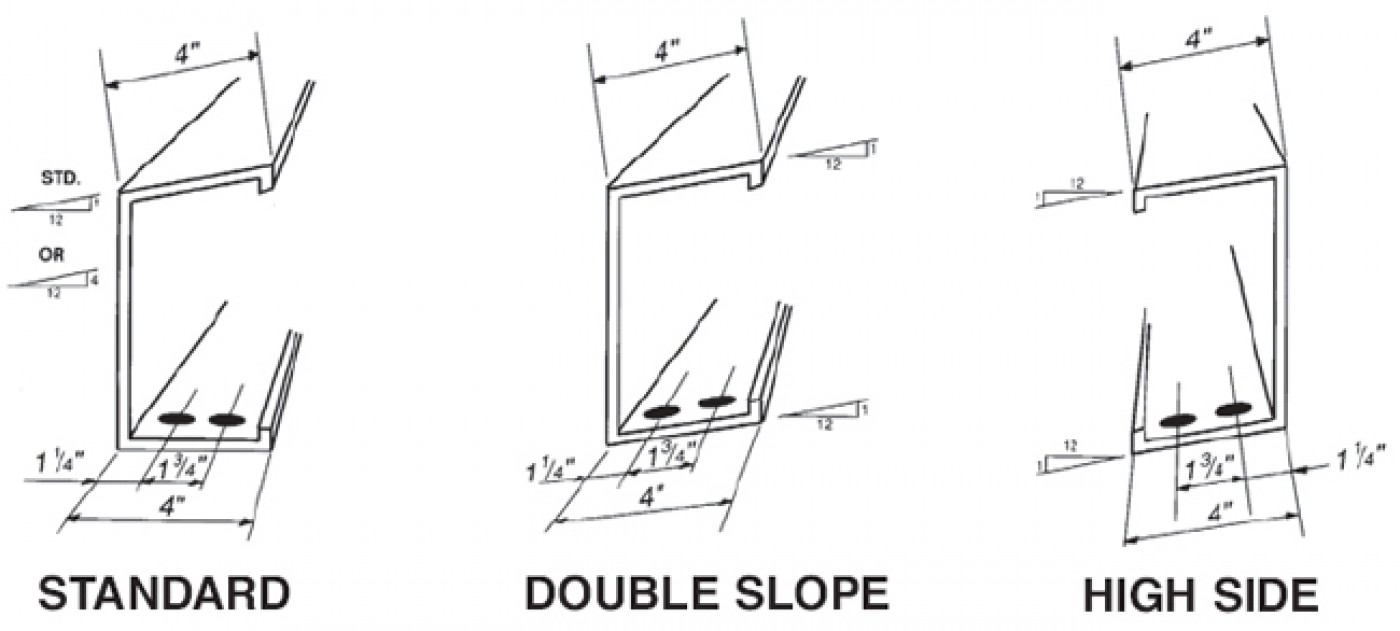

Note: Double slope eave struts are available in the same sizes and gauges as standard eave struts.
When ordering, please request double slope.
IMPORTANT INFORMATION:
- Standard structural shapes are available in 16, 14 and 12 gauge, hi-strength hot rolled material as per ASTM A570 Grade 55 (57,000PSI minimum yield strength) Steel.
- Allowable loads have been calculated in accordance with the 1986 edition of AISI specifications.
- Standard finish is red oxide primer.
- Galvanized (G-90) is also available. Contact Customer Service for lead times.
- Please inquire concerning special custom shaped sections and special punching.
- Available lengths: Any practical length, contact Customer Service for further information.
- Engineering data: www.loseke.com/lgsi.html.
Availability
| Section | GA | WT PER LINEAL FT. | ACTUAL DIM. (LGSI ZEES) | AVAILABILITY | |
| ZEES | CEES | ||||
| 12 x 4 | 12 | 7.48 | - | - | • |
| 12 x 3 1/2 | 12 | 7.12 | 12 x 3 1/8 x 3 3/8 | • | • |
| 12 x 3 | 14 | 4.51 | 12 x 2 5/8 x 2 7/8 | • | •* |
| 12 x 3 | 12 | 6.77 | 12 x 2 5/8 x 2 7/8 | • | •* |
| 12 x 2 1/2 | 14 | 4.27 | 12 x 2 1/8 x 2 3/8 | • | • |
| 12 x 2 1/2 | 12 | 6.41 | 12 x 2 1/8 x 2 3/8 | • | • |
| 10 x 4 | 14 | 4.51 | - | - | • |
| 10 x 4 | 12 | 6.77 | - | - | • |
| 10 x 3 1/2 | 14 | 4.27 | 10 x 3 1/8 x 3 3/8 | • | • |
| 10 x 3 1/2 | 12 | 6.41 | 10 x 3 1/8 x 3 3/8 | • | • |
| 10 x 3 | 14 | 4.03 | 10 x 2 5/8 x 2 7/8 | • | •* |
| 10 x 3 | 12 | 6.05 | 10 x 2 5/8 x 2 7/8 | • | •* |
| 10 x 2 1/2 | 16 | 3.20 | 10 x 2 1/8 x 2 3/8 | • | • |
| 10 x 2 1/2 | 14 | 3.80 | 10 x 2 1/8 x 2 3/8 | • | • |
| 10 x 2 1/2 | 12 | 5.69 | 10 x 2 1/8 x 2 3/8 | • | • |
| 10 x 2 | 16 | 3.00 | - | - | • |
| 10 x 2 | 14 | 3.56 | - | - | • |
| 10 x 2 | 12 | 5.34 | - | - | • |
| 9 x 4 | 14 | 4.27 | - | - | • |
| 9 x 4 | 12 | 6.41 | - | - | • |
| 9 x 3 1/2 | 14 | 4.03 | 9 x 3 1/8 x 3 3/8 | • | • |
| 9 x 3 1/2 | 12 | 6.05 | 9 x 3 1/8 x 3 3/8 | • | • |
| 9 x 3 | 16 | 3.20 | 9 x 2 5/8 x 2 7/8 | • | •* |
| 9 x 3 | 14 | 3.80 | 9 x 2 5/8 x 2 7/8 | • | •* |
| 9 x 3 | 12 | 5.69 | 9 x 2 5/8 x 2 7/8 | • | •* |
| 9 x 2 1/2 | 16 | 3.00 | 9 x 2 1/8 x 2 3/8 | • | • |
| 9 x 2 1/2 | 14 | 3.56 | 9 x 2 1/8 x 2 3/8 | • | • |
| 9 x 2 1/2 | 12 | 5.34 | 9 x 2 1/8 x 2 3/8 | • | • |
| 9 x 2 | 16 | 2.80 | - | - | • |
| 9 x 2 | 14 | 3.32 | - | - | • |
| 9 x 2 | 12 | 4.98 | - | - | • |
| 8 x 4 | 14 | 4.03 | - | - | • |
| 8 x 4 | 12 | 6.05 | - | - | • |
| 8 x 3 1/2 | 16 | 3.20 | 8 x 3 1/8 x 3 3/8 | • | • |
| 8 x 3 1/2 | 14 | 3.80 | 8 x 3 1/8 x 3 3/8 | • | • |
| 8 x 3 1/2 | 12 | 5.69 | 8 x 3 1/8 x 3 3/8 | • | • |
| 8 x 3 | 16 | 3.00 | 8 x 2 5/8 x 2 7/8 | • | •* |
| 8 x 3 | 14 | 3.56 | 8 x 2 5/8 x 2 7/8 | • | •* |
| 8 x 3 | 12 | 5.34 | 8 x 2 5/8 x 2 7/8 | • | •* |
| 8 x 2 1/2 | 16 | 2.80 | 8 x 2 1/8 x 2 3/8 | • | • |
| 8 x 2 1/2 | 14 | 3.32 | 8 x 2 1/8 x 2 3/8 | • | • |
| 8 x 2 1/2 | 12 | 4.98 | 8 x 2 1/8 x 2 3/8 | • | • |
| 8 x 2 | 16 | 2.60 | - | - | • |
- Galvanized (G-90) substrate is available on most items. Please inquire.
- Some items require longer lead times. For delivery information, please contact Customer Service.
